PALOMAT PALLET MAGAZINES · AUTHORIZED DISTRIBUTOR IN ISRAEL

Stack.
Destack.
Automate.

8 pallet magazine models across 4 product families — from semi-automatic dispensers to fully automated AMR-integrated systems.

Browse CatalogRequest Quote
Palomat Pallet Dispenser
8+
Magazine Models
25
Max Capacity
1992
Since
15,000+
Units Worldwide

Palomat Product Catalog

Browse the complete range of Palomat pallet magazines

Showing 8 of 8 products
PALOMAT ½ PalletsStand-Alone

PALOMAT ½ Pallets

Fully Automatic

Capacity: 15 half-pallets (500 kg)

Designed for half-pallet dimensionsTwo variants: Greenline (electric) and Flexomatic (pneumatic)Photo sensor pallet detection

Pallet magazine specifically designed for half-pallet handling (600×800 mm). Available in both Greenline (electric-only) and Flexomatic (pneumatic + electric) variants. Handles all 4-way half-pallets made of wood, plastic, and metal.

PowerGreenline: 220–240V AC / 50 Hz (550W) | Flexomatic: Compressed air 6–7 bar + 100–240V AC (20W)
Capacity15 half-pallets (500 kg)
PALOMAT 5Stand-Alone

PALOMAT 5

Semi-Automatic

Capacity: 15 pallets (500 kg) or 25 pallets (700 kg)

Processes 1–5 pallets per cycleAutomatic stack/destack determinationIntegrated maximum capacity indicator

Semi-automatic pallet magazine that processes 1–5 pallets simultaneously per cycle. Electric Plug-and-Play with automatic stack/destack determination and integrated maximum capacity indicator. Available in 15-pallet (500 kg) and 25-pallet (700 kg) models.

Power220–240V AC / 50 Hz (700W operating, 23W standby)
Capacity15 pallets (500 kg) or 25 pallets (700 kg)
PALOMAT AdjustableStand-Alone

PALOMAT Adjustable

Fully Automatic

Capacity: 15 pallets (500 kg)

Switches between Euro and industrial pallets in 5 seconds2-in-1 pallet magazine — saves floor spacePush-button + manual rail adjustment

Two pallet magazines in one — switches between Euro pallets (1200×800 mm) and industrial pallets (1200×1000 mm) in just 5 seconds. Push a button and manually adjust the side rail to change pallet size. Ideal for facilities using both pallet standards in the same area.

Power220–240V AC / 50 Hz
Capacity15 pallets (500 kg)
PALOMAT AMRAMR Integration

PALOMAT AMR

Fully Automatic

Capacity: 15 pallets (500 kg)

Automatic pallet buffer and docking stationOPC UA interface for robot communication24VDC I/O signals for external equipment

Pallet magazine designed for seamless cooperation with autonomous mobile robots (AMR). Acts as a fully automatic pallet buffer and docking station, enabling continuous stacking and destacking without human intervention. Compatible with MiR, KUKA, Robotize, Lowpad, and SAFELOG mobile robots.

Power220–240V AC / 50 Hz (550W operating, 23W standby)
Capacity15 pallets (500 kg)
PALOMAT Double UpStand-Alone

PALOMAT Double Up

Fully Automatic

Capacity: 2×15 pallets (2×500 kg)

Handles 1+1 pallets two in a lineAC operated Plug & PlayPhoto sensor detection

Pallet magazine designed for 1+1 pallet handling — processes two pallets in a line simultaneously. Fully electric with 2×500 kg lifting capacity and 2×15 pallet stacks. Ideal for double-pallet workflows where two pallets are always handled together.

Power220–240V AC / 50 Hz (1000W operating, 23W standby)
Capacity2×15 pallets (2×500 kg)
PALOMAT FlexomaticStand-Alone

PALOMAT Flexomatic

Fully Automatic

Capacity: 15 pallets (500 kg) or 25 pallets (800 kg)

Compressed air + electric operationUltra-low power consumption (20W)36–72 litres compressed air per cycle

Pneumatic and electric pallet magazine for fully automatic stacking and destacking. Uses compressed air (6–7 bar) plus low-voltage electricity, consuming only 20W during operation. Handles up to 25 pallets with 800 kg capacity. Touch panel for mode switching.

PowerCompressed air 6–7 bar + 100–240V AC / 50–60 Hz (20W operating, 16W standby)
Capacity15 pallets (500 kg) or 25 pallets (800 kg)

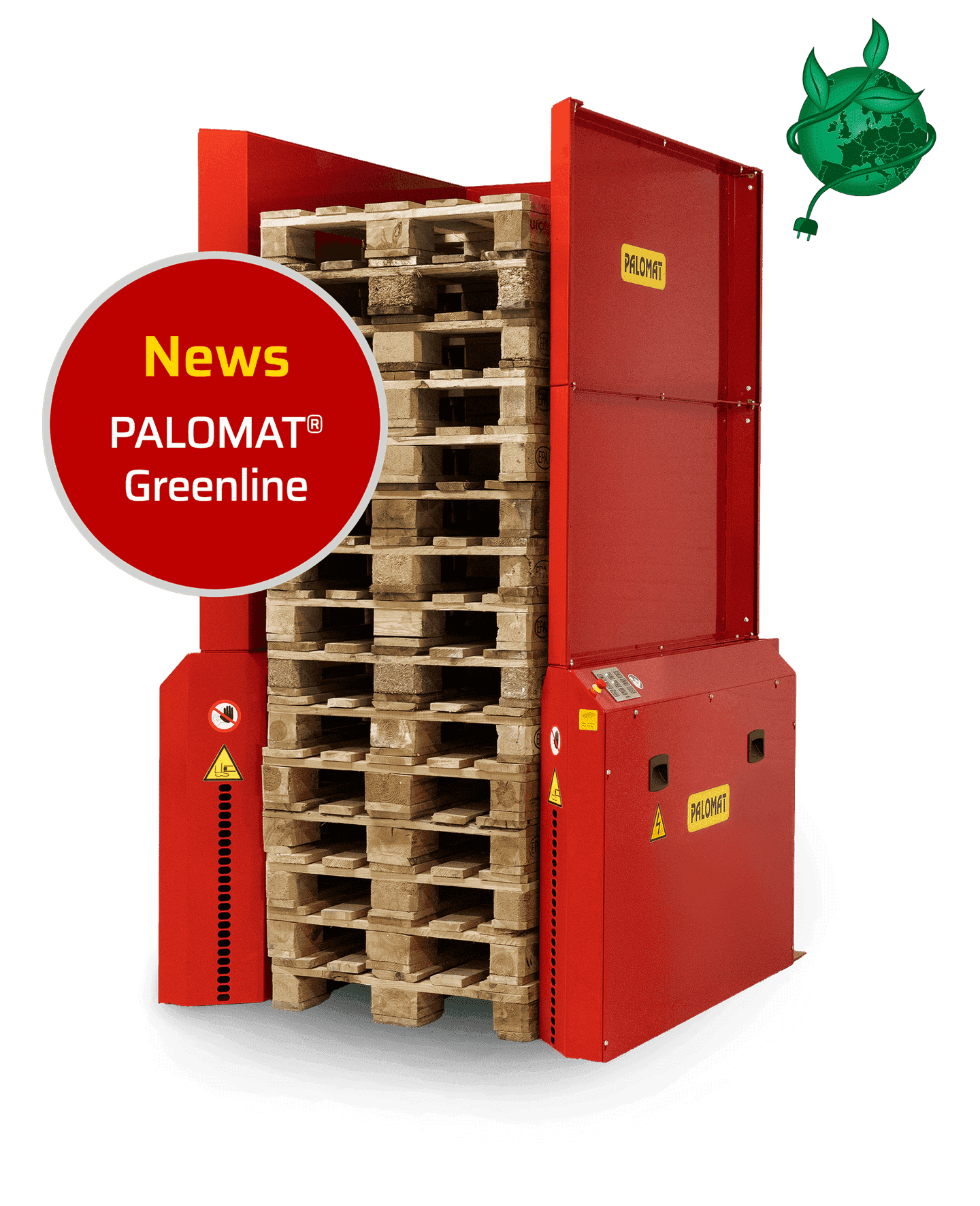

PALOMAT GreenlineStand-Alone

PALOMAT Greenline

Fully Automatic

Capacity: 15 pallets (500 kg) or 25 pallets (700 kg)

Plug & Play — only 230V power neededNo compressed air requiredPhoto sensor pallet detection

Fully electric pallet magazine that automatically stacks and destacks empty pallets at floor level. Only requires a standard 230V power supply — no compressed air needed. Plug-and-play installation with photo sensor detection and web browser access for operational data.

Power110–240V AC / 50–60 Hz (550–700W operating, 23W standby)
Capacity15 pallets (500 kg) or 25 pallets (700 kg)
PALOMAT InlineInline Integration

PALOMAT Inline

Fully Automatic

Capacity: 15 pallets

Mounts over any conveyor type, width, and heightHandles multiple pallet sizes in one magazineAutomatically adjustable distance blocks (pneumatic)

Pallet magazine designed for integration directly into conveyor lines and automatic production systems. Mounts over any conveyor type and handles all 4-way pallets in any direction. Available in pneumatic and electric variants. 100% customised to each project with adjustable distance blocks for multi-size pallet handling.

PowerPneumatic (compressed air) or Electric (standard industrial outlet)
Capacity15 pallets
