Shibaura
TH Series
SCARA

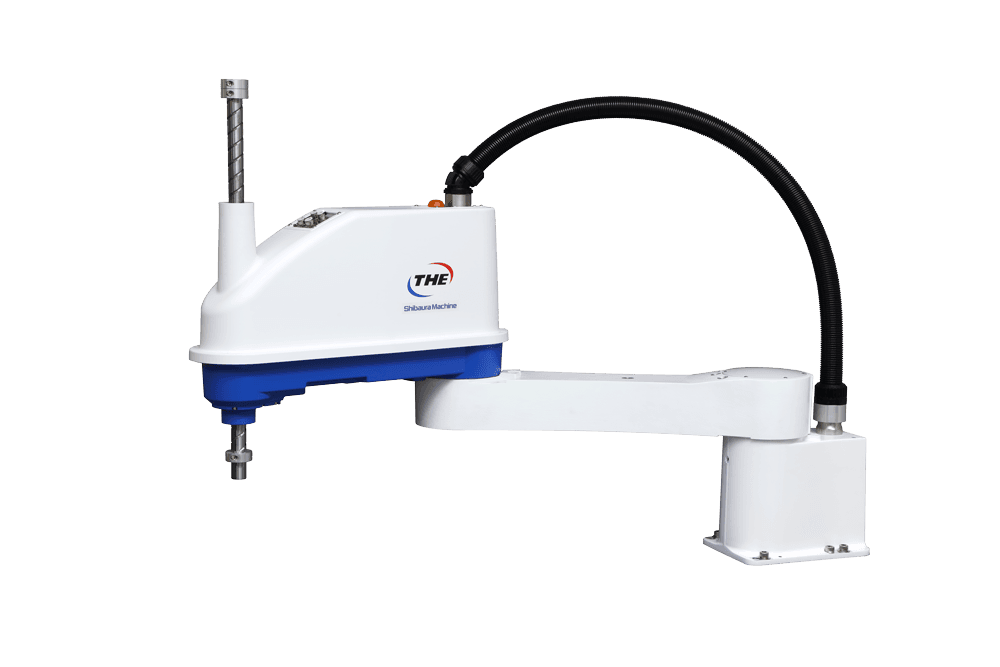

TH1050A
Long-reach SCARA robot with 1050mm arm length for large workspace applications
Payload20 kg
Reach1050 mm
Repeat.±0.01 mm
Skip to content
SCARA & Industrial Robots
SHIBAURA MACHINE
PrecisionBorn in Japan.Built for Exactness.
Shibaura Machine robots combine Japanese manufacturing heritage with cutting-edge precision, delivering repeatability for the most demanding assembly and electronics applications.
19
Robot Models
20kg
Max Payload
±0.01
Repeatability
1938
Founded
Find Your Perfect Robot
View
Payload (kg)
Reach (mm)
Showing 19 of 19 robots
Quick:
Showing 19 of 19 productsPage 1 of 1
Shibaura
TH Series
SCARA

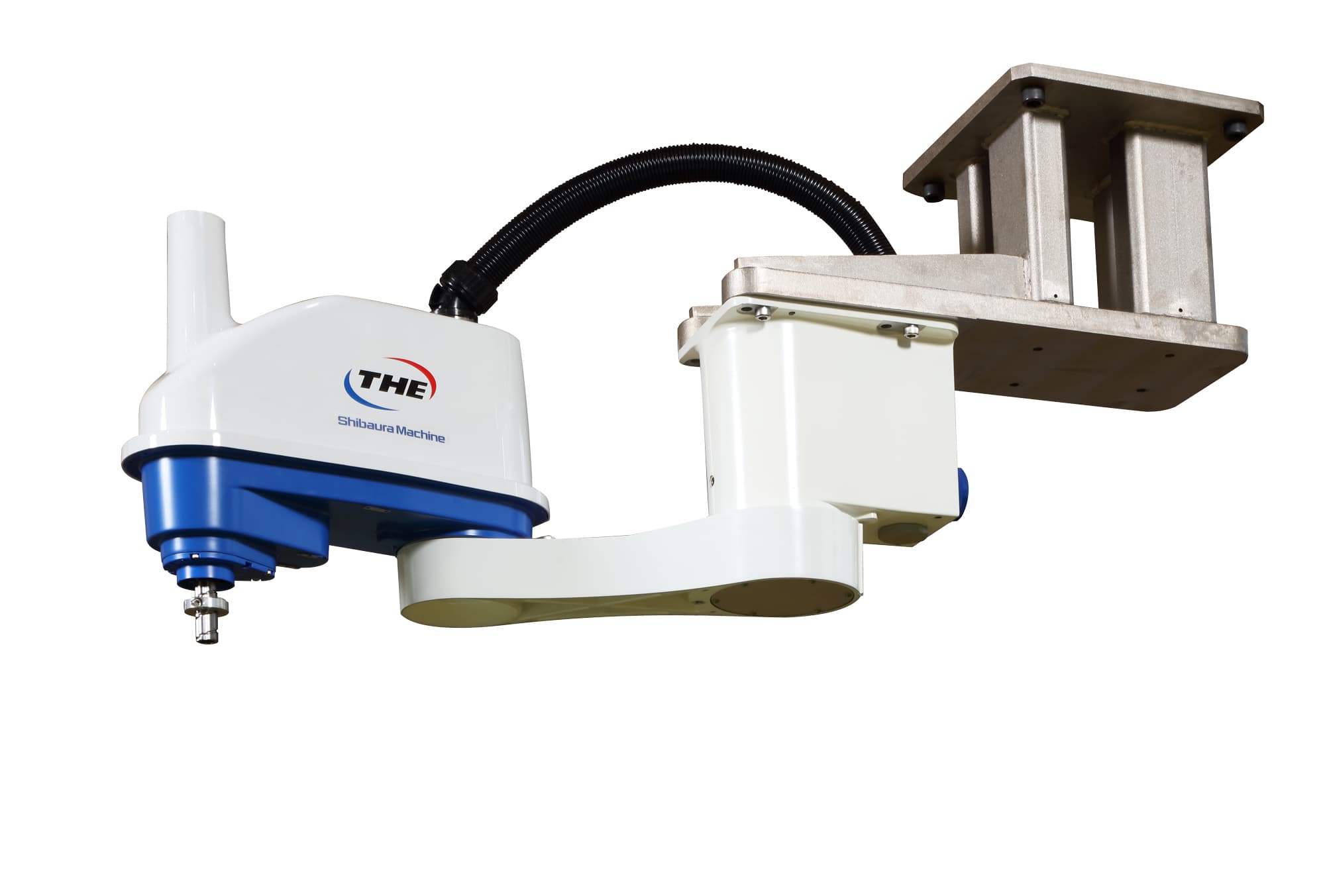

TH650A
High-speed SCARA robot with 650mm arm length designed for demanding industrial automation
Payload10 kg
Reach650 mm
Repeat.±0.01 mm
Shibaura
TH Series
SCARA

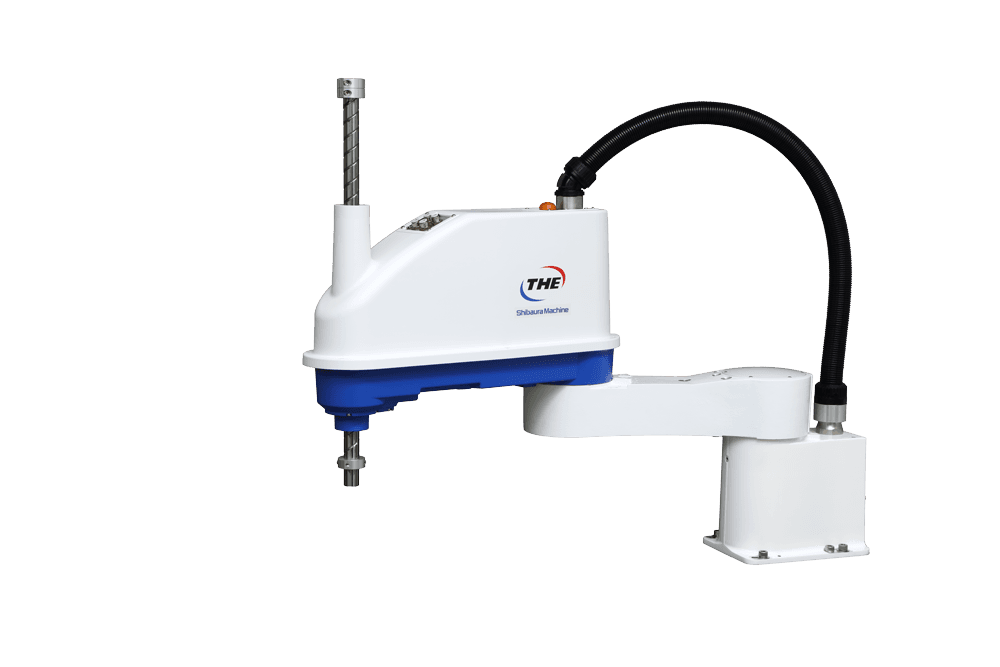

TH850A
Heavy-duty SCARA robot with 850mm arm length and 20kg payload capacity
Payload20 kg
Reach850 mm
Repeat.±0.01 mm
Shibaura
THE Series
SCARA
THE1000
Largest SCARA model with 1000mm reach for heavy payload and large workspace applications
Payload20 kg
Reach1000 mm
Repeat.±0.025 mm
Shibaura
THE Series
SCARA

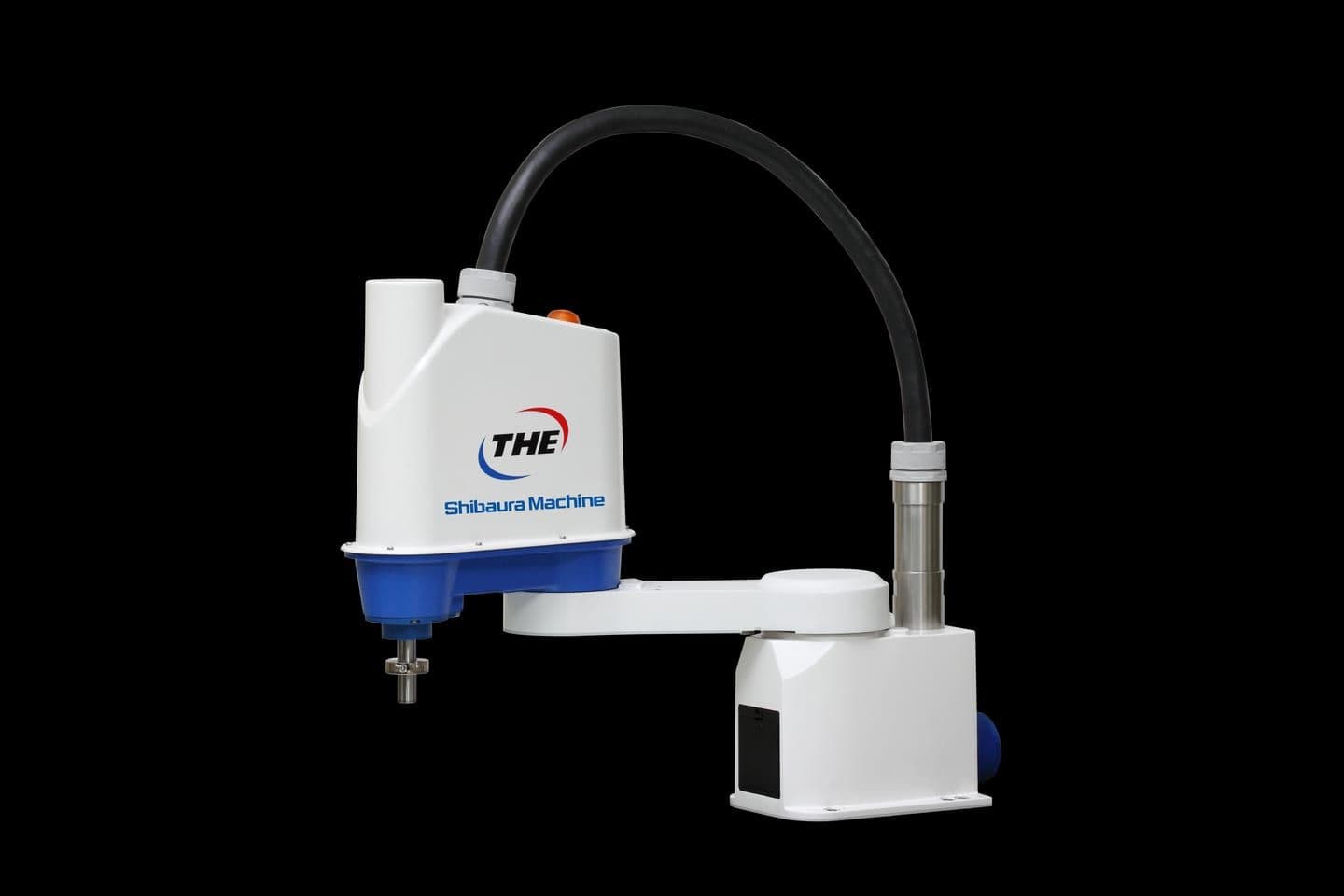

THE400
Compact high-speed SCARA robot ideal for fast, precise operations in assembly and inspection processes
Payload5 kg
Reach400 mm
Repeat.±0.01 mm
Shibaura
THE Series
SCARA
THE600
Mid-range SCARA with enhanced performance for heavier loads and demanding applications
Payload12 kg
Reach600 mm
Repeat.±0.01 mm
Shibaura
THE Series
SCARA
THE800
High-speed SCARA robot with 850mm arm length for heavy payload applications
Payload20 kg
Reach800 mm
Repeat.±0.025 mm
Shibaura
THL Series
SCARA
THL500
Energy-efficient SCARA robot for assembly and material handling
Payload10 kg
Reach500 mm
Repeat.±0.01 mm
Shibaura
THL Series
SCARA
THL600
Mid-range energy-efficient SCARA with balanced performance and cost
Payload10 kg
Reach600 mm
Repeat.±0.01 mm
Shibaura
THL Series
SCARA
THL700
Extended reach energy-efficient SCARA for larger workspace applications
Payload10 kg
Reach700 mm
Repeat.±0.01 mm
Shibaura
TV Series
Industrial

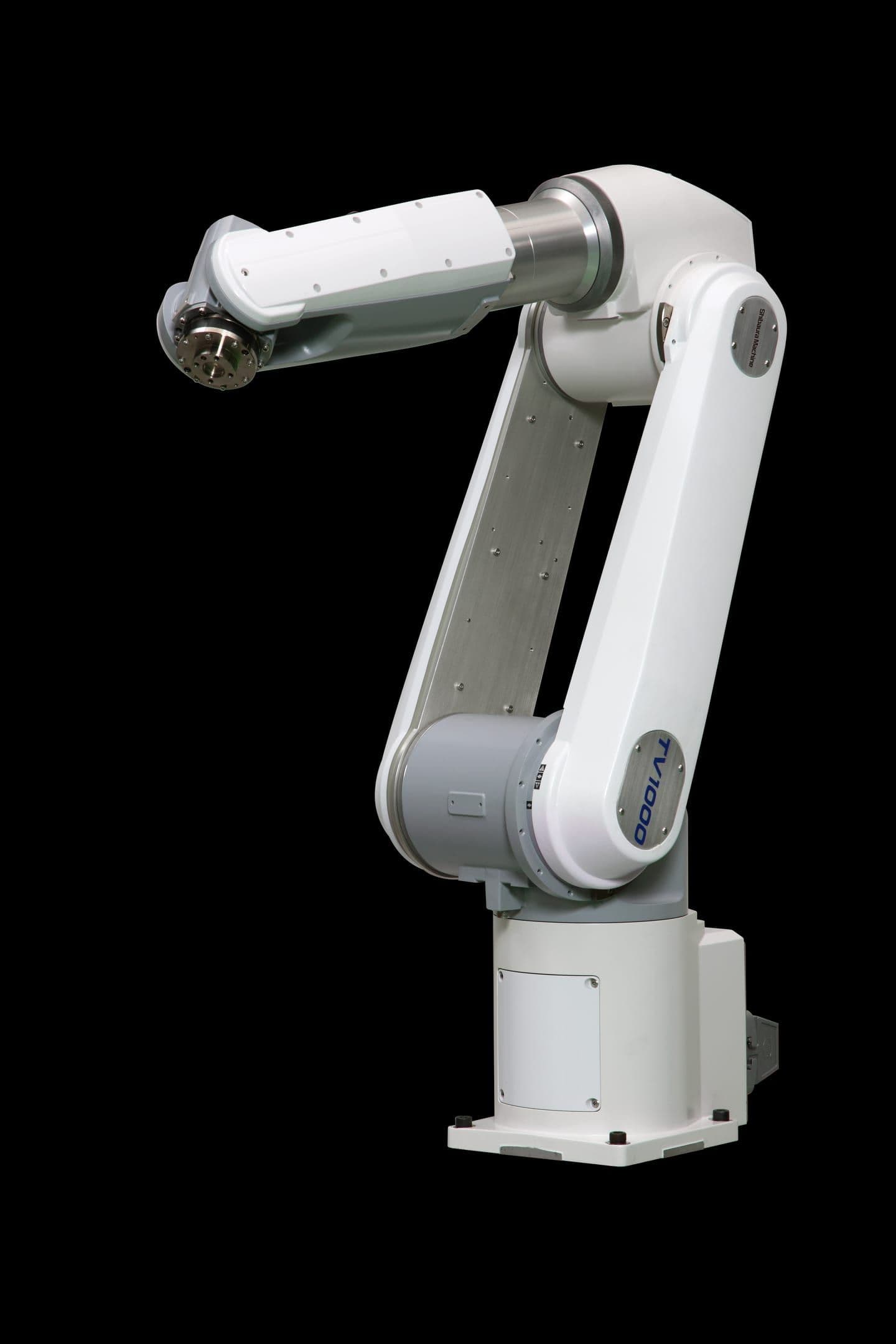

TV1000
Extended reach 6-axis robot with 1090mm reach for large workspace coverage
Payload5 kg
Reach1090 mm
Repeat.±0.03 mm
Shibaura
TV Series
Heavy Payload
TV1000H
High payload variant of TV1000 with 10kg capacity for heavier applications
Payload10 kg
Reach1090 mm
Repeat.±0.04 mm
Shibaura
TV Series
Industrial

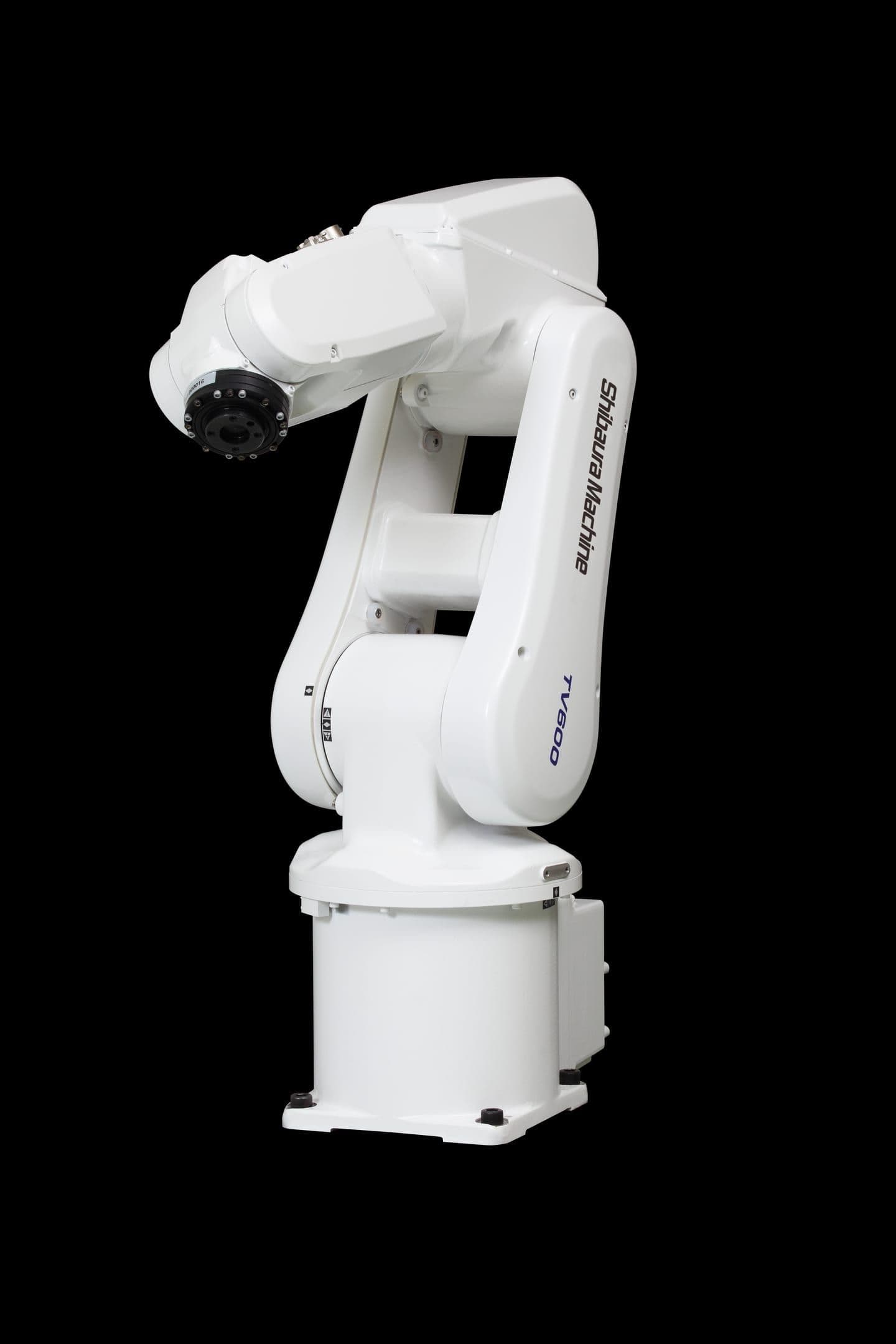

TV600
Compact 6-axis robot with 572mm arm length for precision applications
Payload3 kg
Reach580 mm
Repeat.±0.03 mm
Shibaura
TV Series
Industrial

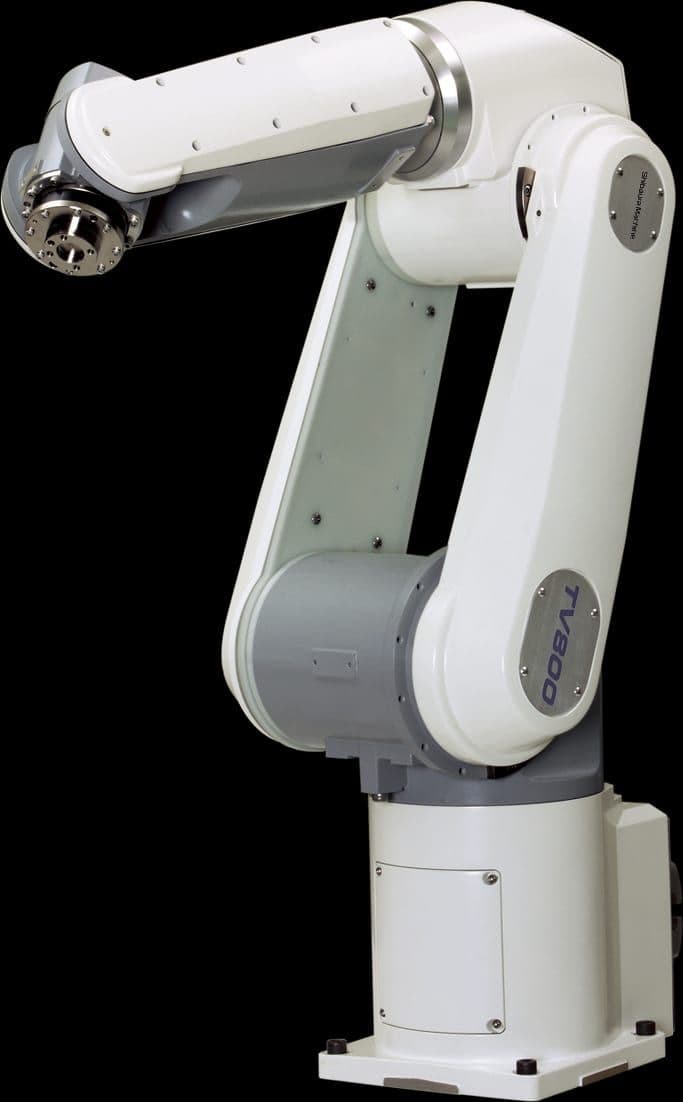

TV800
Mid-range 6-axis robot with 892mm reach and balanced payload capacity
Payload5 kg
Reach892 mm
Repeat.±0.02 mm
Shibaura
TVL Series
Industrial
TVL500
Lightweight compact 6-axis robot, 602 mm reach and 28 kg mass
Payload3 kg
Reach602 mm
Repeat.±0.02 mm
Shibaura
TVL Series
Industrial
TVL700
Cost-effective 6-axis robot with 700mm arm and enhanced performance
Payload4 kg
Reach801 mm
Repeat.±0.03 mm
Shibaura
TVM Series
Industrial

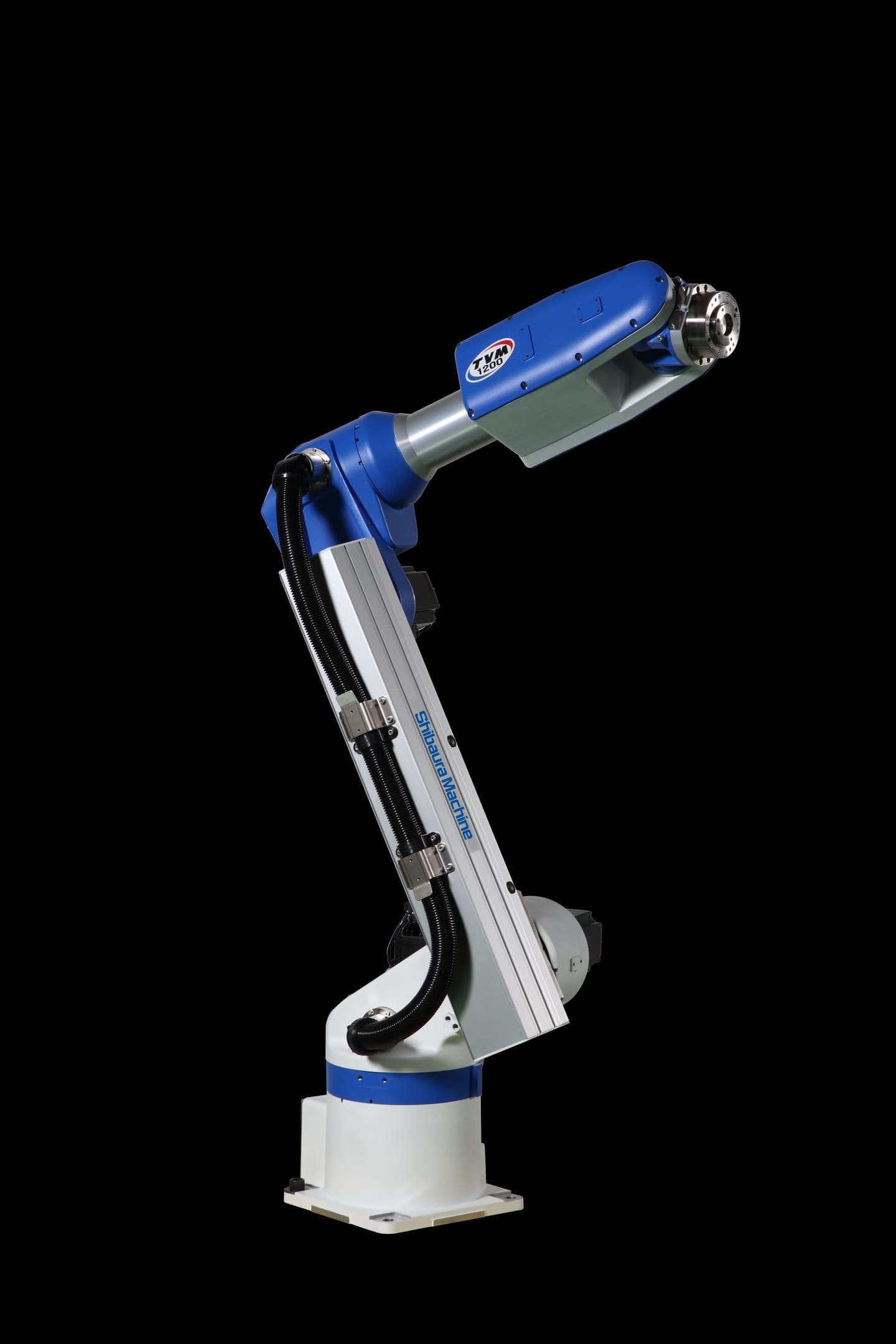

TVM1200
Medium-reach 6-axis robot optimized for versatile industrial applications
Payload15 kg
Reach1432 mm
Repeat.±0.05 mm
Shibaura
TVM Series
Industrial

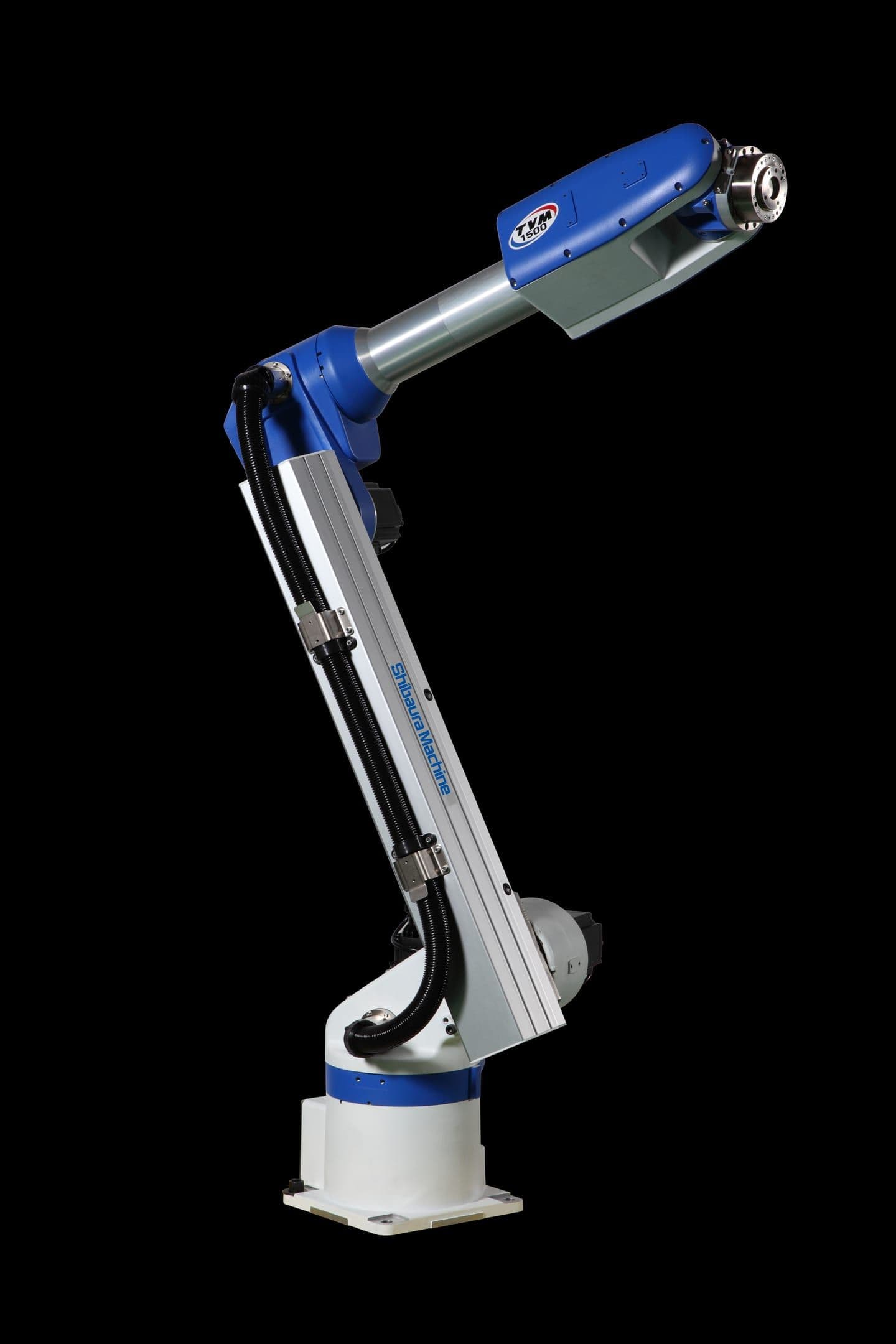

TVM1500
Long-reach 6-axis robot for applications requiring extended workspace
Payload10 kg
Reach1726 mm
Repeat.±0.05 mm
Shibaura
TVM Series
Industrial

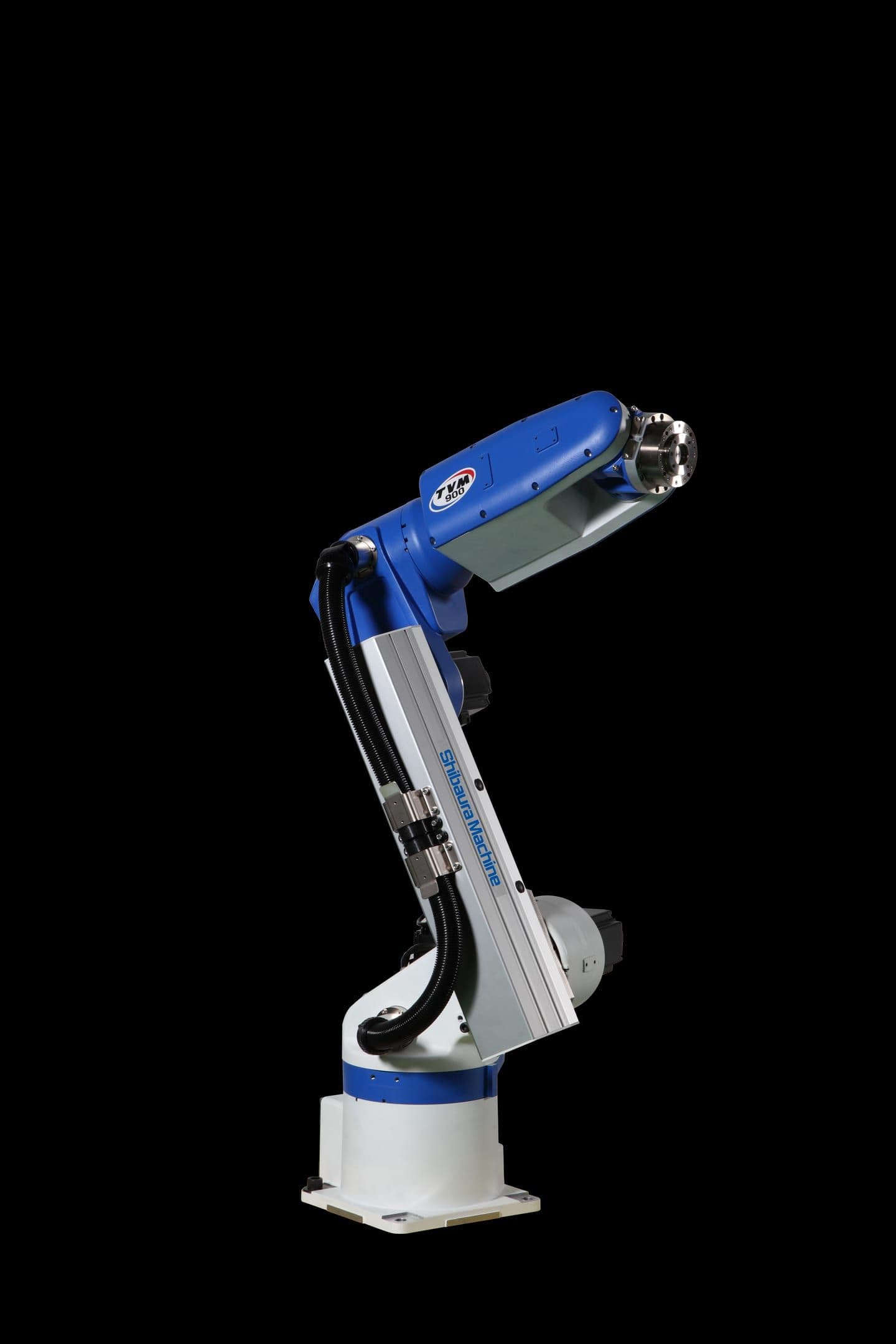

TVM900
Compact 6-axis robot with high payload capacity and precision
Payload20 kg
Reach1142 mm
Repeat.±0.05 mm
Industry ApplicationsWhere Shibaura
Where Shibaura
Excels
From semiconductor assembly to automotive precision, Shibaura robots perform where accuracy is non-negotiable.
Precision Assembly
Sub-millimeter repeatability for component assembly, fastening, and joining operations.
0.31scycle time
Pick & Place
High-speed pick and place: the TH650A and THE600 are rated at a 0.31 second standard cycle time with a 2 kg load.
0.31sec cycle time
Vision Inspection
Positioning repeatability of ±0.01 mm in X-Y across the TH and THL series for inspection and precision placement.
±0.01mm repeatability
Machine Tending
Continuous unattended CNC and press tending with automatic part loading and unloading.
24/7operation
Electronics Assembly
Sub-millimeter precision for PCB handling, chip placement, and connector assembly.
±0.01mm
Automotive
Reliable cycle-after-cycle performance for stamping, assembly, and quality control.
20kgmax payload
Medical Devices
Clean-room ready robots for sterile medical device assembly and handling.
ISOClass 7
Packaging
High-throughput packaging lines with consistent speed and gentle product handling.
1200packs/hr
Certified Quality
Japanese precision backed by global standards
CE
CE Marked
EU Safety Conformity
JPN
Made in Japan
Manufactured in Numazu, Shizuoka
1938
Founded 1938
Founded 1938 in Japan
