Vacuum Grippers
Any Surface.Any Robot.Zero Limits.
UniGripper Swedish vacuum engineering delivers reliable gripping across all surfaces at production speeds that do not slow you down.
ISO 9001ISO 14001UR+ CertifiedFANUC CRXBelow 70 dB(A)
6+
Series
500mm
Max Width
<70dB
Noise
UR+
Certified
How UniGripper
Swedish engineering combines adaptive suction zones with intelligent pressure control for reliable grip on any surface.
01
Surface Detection
Integrated sensors detect surface type and automatically adjust vacuum zones for optimal grip force.
02
Adaptive Sealing
Flexible bellows conform to irregular surfaces, maintaining a perfect vacuum seal.
03
Intelligent Release
Controlled release prevents product damage. Energy-recovery system recaptures vacuum energy between cycles.
Find Your Perfect Robot
View
Lifting force (N)
Length (mm)
Showing 36 of 36 robots
Quick:
Showing 20 of 36 productsPage 1 of 2
UniGripper
Co/Light
Collaborative

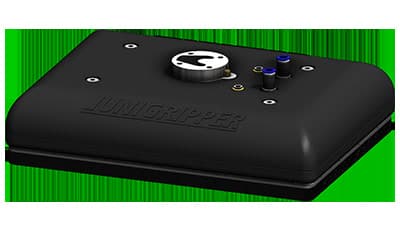

Co/Light Maxi
Co/Light vacuum gripper, 370 x 270 mm, 3.9 kg. UniGripper publishes a theoretical lifting force of 2211 N at 800 mBar…
Force2211 N @ 800 mBar (Co/Light Maxi 30/30, full coverage)
Dims370 x 270 x 106 mm
UniGripper
Co/Light
Collaborative

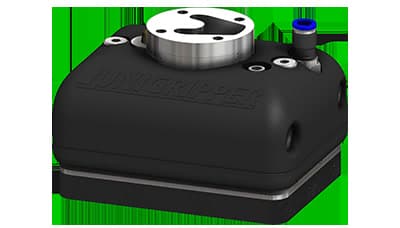

Co/Light Mini
Co/Light vacuum gripper, 150 x 112 mm, 0.9 kg. UniGripper publishes a theoretical lifting force of 166 N at 800 mBar …
Force166 N @ 800 mBar (Co/Light Mini, full coverage)
Dims150 x 112 x 99 mm
UniGripper
Co/Light
Collaborative
Co/Light Regular
Co/Light vacuum gripper, 265 x 150 mm, 1.8 kg. UniGripper publishes a theoretical lifting force of 804 N at 800 mBar …
Force804 N @ 800 mBar (Co/Light Regular 30/30, full coverage)
Dims265 x 150 x 101 mm
UniGripper
Specialized Systems
Specialized System
HoverGripper
The UniGripper HoverGripper is a novel gripping system for full layers of thin-walled containers and other products s…
DimsWeight 120-150 kg; Power 0.5-1.5 kW
UniGripper
Specialized Systems
Specialized System
LayerGripper
UniGripper LayerGripper is a well-proven concept for palletizing and depalletizing products in full or semi layers. U…
UniGripper
Standard Module System 120
Vacuum Gripper
SMS 120/1000
Standard Module System 120 vacuum gripper, 1006 x 126 mm, 6.2 kg. UniGripper publishes a theoretical lifting force of…
Force2660 N @ 800 mBar (SMS 120/1000/20/20, full coverage)
Dims1006 x 126 x 103 mm
UniGripper
Standard Module System 120
Vacuum Gripper
SMS 120/1200
Standard Module System 120 vacuum gripper, 1206 x 126 mm, 6.9 kg. UniGripper publishes a theoretical lifting force of…
Force3202 N @ 800 mBar (SMS 120/1200/20/20, full coverage)
Dims1206 x 126 x 103 mm
UniGripper
Standard Module System 120
Vacuum Gripper
SMS 120/1400
Standard Module System 120 vacuum gripper, 1406 x 126 mm, 8.6 kg. UniGripper publishes a theoretical lifting force of…
Force3745 N @ 800 mBar (SMS 120/1400/20/20, full coverage)
Dims1406 x 126 x 103 mm
UniGripper
Standard Module System 120
Vacuum Gripper

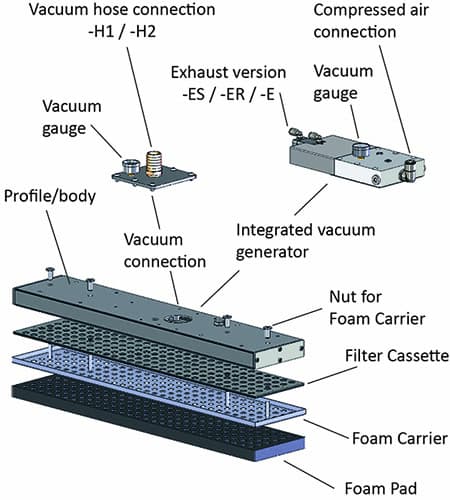

SMS 120/200
Standard Module System 120 vacuum gripper, 206 x 126 mm, 1.3 kg. UniGripper publishes a theoretical lifting force of …
Force488 N @ 800 mBar (SMS 120/200/20/20, full coverage)
Dims206 x 126 x 103 mm
UniGripper
Standard Module System 120
Vacuum Gripper
SMS 120/300
Standard Module System 120 vacuum gripper, 306 x 126 mm, 1.9 kg. UniGripper publishes a theoretical lifting force of …
Force785 N @ 800 mBar (SMS 120/300/30/20, full coverage)
Dims306 x 126 x 103 mm
UniGripper
Standard Module System 120
Vacuum Gripper
SMS 120/400
Standard Module System 120 vacuum gripper, 406 x 126 mm, 2.6 kg. UniGripper publishes a theoretical lifting force of …
Force1031 N @ 800 mBar (SMS 120/400/20/20, full coverage)
Dims406 x 126 x 103 mm
UniGripper
Standard Module System 120
Vacuum Gripper
SMS 120/600
Standard Module System 120 vacuum gripper, 606 x 126 mm, 3.6 kg. UniGripper publishes a theoretical lifting force of …
Force1574 N @ 800 mBar (SMS 120/600/20/20, full coverage)
Dims606 x 126 x 103 mm
UniGripper
Standard Module System 120
Vacuum Gripper
SMS 120/800
Standard Module System 120 vacuum gripper, 806 x 126 mm, 4.8 kg. UniGripper publishes a theoretical lifting force of …
Force2117 N @ 800 mBar (SMS 120/800/20/20, full coverage)
Dims806 x 126 x 103 mm
UniGripper
Standard Module System 80
Vacuum Gripper
SMS 80/1000
Standard Module System 80 vacuum gripper, 1006 x 86 mm, 5.2 kg. UniGripper publishes a theoretical lifting force of 1…
Force1762 N @ 800 mBar (SMS 80/1000/30/20, full coverage)
Dims1006 x 86 x 103 mm
UniGripper
Standard Module System 80
Vacuum Gripper
SMS 80/1200
Standard Module System 80 vacuum gripper, 1206 x 86 mm, 6.3 kg. UniGripper publishes a theoretical lifting force of 2…
Force2082 N @ 800 mBar (SMS 80/1200/30/20, full coverage)
Dims1206 x 86 x 103 mm
UniGripper
Standard Module System 80
Vacuum Gripper
SMS 80/1400
Standard Module System 80 vacuum gripper, 1406 x 86 mm, 6.6 kg. UniGripper publishes a theoretical lifting force of 2…
Force2456 N @ 800 mBar (SMS 80/1400/30/20, full coverage)
Dims1406 x 86 x 103 mm
UniGripper
Standard Module System 80
Vacuum Gripper

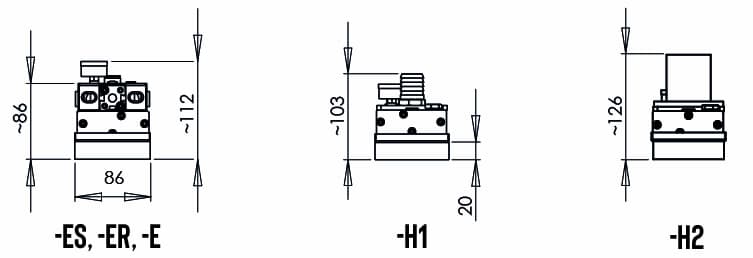

SMS 80/200
Standard Module System 80 vacuum gripper, 206 x 86 mm, 1 kg. UniGripper publishes a theoretical lifting force of 320 …
Force320 N @ 800 mBar (SMS 80/200/30.25/20, full coverage)
Dims206 x 86 x 103 mm
UniGripper
Standard Module System 80
Vacuum Gripper
SMS 80/300
Standard Module System 80 vacuum gripper, 306 x 86 mm, 1.4 kg. UniGripper publishes a theoretical lifting force of 53…
Force534 N @ 800 mBar (SMS 80/300/30.25/20, full coverage)
Dims306 x 86 x 103 mm
UniGripper
Standard Module System 80
Vacuum Gripper
SMS 80/400
Standard Module System 80 vacuum gripper, 406 x 86 mm, 2 kg. UniGripper publishes a theoretical lifting force of 694 …
Force694 N @ 800 mBar (SMS 80/400/30/20, full coverage)
Dims406 x 86 x 103 mm
Showing 20 of 36 — 16 more available
Industry ApplicationsWhere UniGripper
Where UniGripper
Excels
From delicate food items to heavy glass panels, UniGripper adapts to every gripping challenge.
Pick & Place
Patented valves open only where the product covers the foam, so one tool handles mixed sizes without changeover.
Assembly
Valve pitches from 15/15 mm handle small objects and material with high porosity.
Palletizing
LayerGripper and HoverGripper handle full or semi layers, with a typical full-layer tool of 1200x1000 mm.
Collaborative Robots
UR+ certified for seamless plug-and-play integration with Universal Robots cobots.

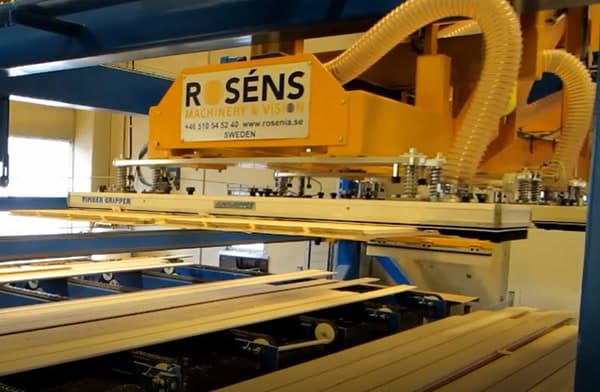

Timber & Wood
Specialized timber gripper for rough-sawn boards, panels, and engineered wood products.
Packaging
One gripper tool handles multiple packaging formats - bags, boxes, trays, and cartons.
Energy Efficiency
A coarser valve pitch cuts air consumption: Co/Light Regular draws 420 Nl/min at 15/15 and 105 Nl/min at 30/30.

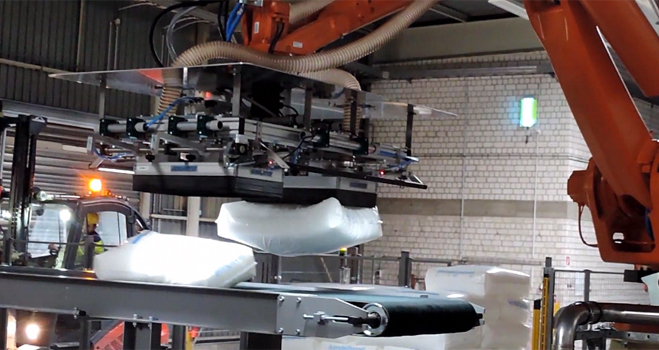

Bag Handling
Handles bags from small pouches of a few grams to sacks of 25 kg and beyond, with proven capability to lift bales up to a tonne.
Swedish Quality Standards
Designed and manufactured in Sweden to the highest industrial standards
ISO
9001
ISO 9001
Quality Management System
ISO
14001
ISO 14001
Environmental Management
UR+
UR+ Certified
Universal Robots Certified
<70
dB

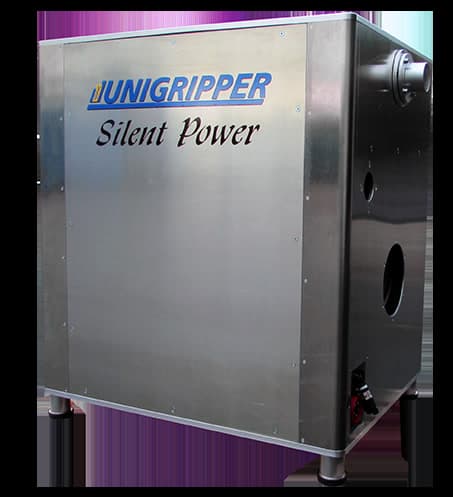

Silent Power
Silent Power ejectors: sound levels below 70 dBA
