40 Qimarox products — from high-speed layer palletizers to continuous vertical conveyors and pallet lifts up to 3,200 kg. Modular components, engineered in the Netherlands.
Qimarox Product Catalog
Explore the full range of material-handling solutions
Product families

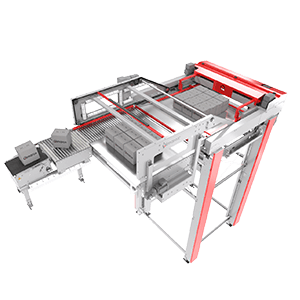

Palletizer4,500/hHighrunner HR7
High-Speed Flexible Layer Palletizer
Qimarox’s fastest layer palletizer, built from standard modules for applications where no standardized configuration fits. Products are formed into complete layers and deposited in one motion while the pallet rides up and down on a pallet lift, keeping the pallet top always level with the formation conveyor for maximum speed.
- Throughput
- 500–4,500 products/h · 150–300 layers/h
- Max payload
- Product 1–25 kg · layer 1–180 kg

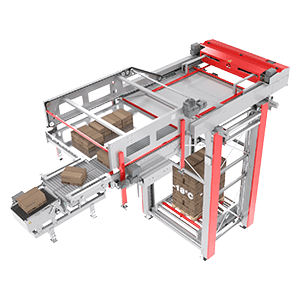

PalletizerIQFHighrunner HR8
IQF / Frozen-Food Layer Palletizer
A layer palletizer configured for the frozen-food (IQF) industry — vegetables, fruit and fries. It positions every row individually to create exact gaps that absorb under-filled or bulged cartons, producing solid, stable pallet loads, and ships with industry-standard layer patterns pre-programmed for automatic selection.
- Throughput
- 900–1,800 products/h · 300 layers/h
- Max payload
- Product 2.5–25 kg · layer 180 kg · pallet up to 1,900 kg

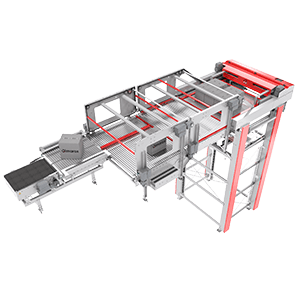

PalletizerLogisticsHighrunner HR9
Logistics Layer Palletizer
A flexible layer palletizer built in the optimal configuration for logistics operations, handling a wide variety of box sizes and layer patterns with automatic pattern selection. Patented product rotation and a high-level formation conveyor over a Prorunner mk10 pallet lift make it highly effective where many products are handled in short batches.
- Throughput
- 500–1,500 products/h · 300 layers/h
- Max payload
- Product 2.5–25 kg · layer 180 kg · pallet up to 1,900 kg

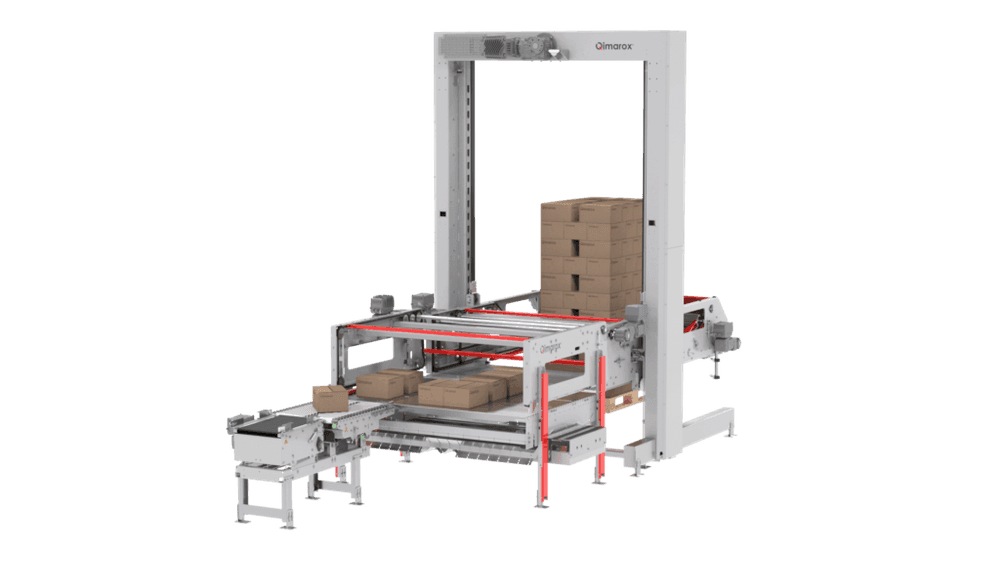

PalletizerFloor-levelLowrunner LR8
Low-Level IQF Palletizer
A low-level palletizer for cartons of frozen foods whose complete layer-formation station sits at floor level — no operator platform or mezzanine required. A product pusher places each item at an exact coordinate to build a row, then full layers are set onto a bi-directional stacking plate, rare among low-level palletizers, for a consistent, stable pallet outline.
- Throughput
- 100–1,260 products/h · 30–120 layers/h
- Max payload
- Product 2.5–25 kg · layer up to 180 kg

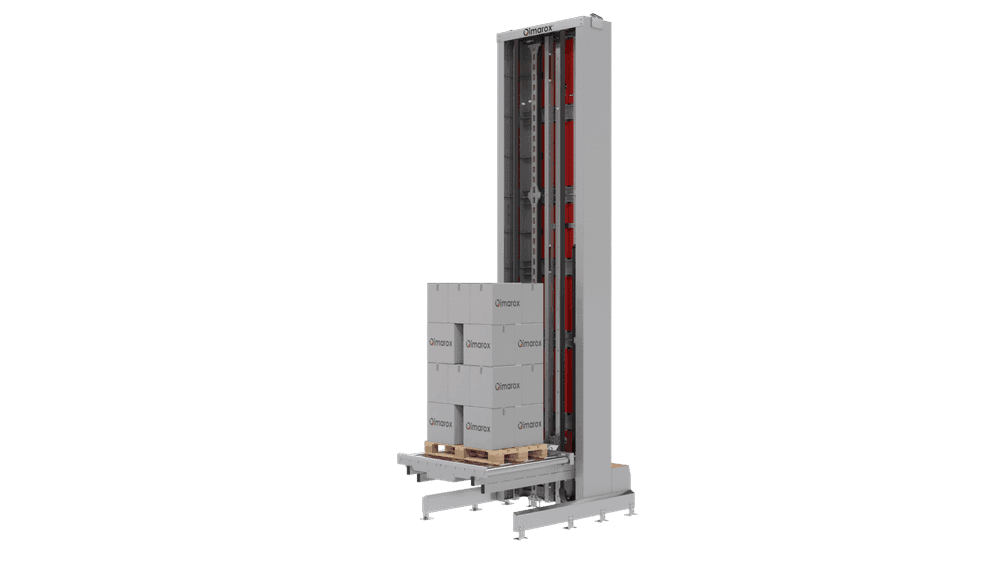

Pallet Lift1,250 kgProrunner mk9
Vertical Pallet Conveyor
A rugged, compact vertical pallet conveyor that automates pallet transport by lifting and lowering pallets to any level of a facility. With the entire drive on one side, pallets can be fed in and out from three directions, making it ideal for vertical sorting across multiple floors. Two flat belts drive the lift instead of chains, so there is nothing to lubricate or tension.
- Throughput
- Up to 200 pallets/h
- Max payload
- Up to 1,250 kg per pallet

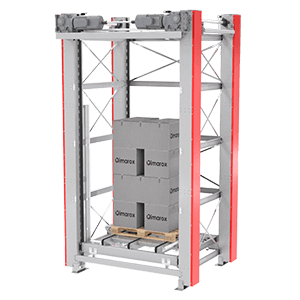

Pallet Lift2,000 kgProrunner mk10
Heavy-Duty Vertical Pallet Conveyor
A sturdy four-column pallet lift built to raise and lower heavy pallets up to 2,000 kg at capacities of up to 200 pallets per hour. Its small footprint fits virtually any layout, and the standard 1200×1100 mm platform carries euro pallets or differently sized block pallets and product carriers. It integrates easily with roller or chain conveyor.
- Throughput
- Up to 200 pallets/h
- Max payload
- Up to 2,000 kg per pallet

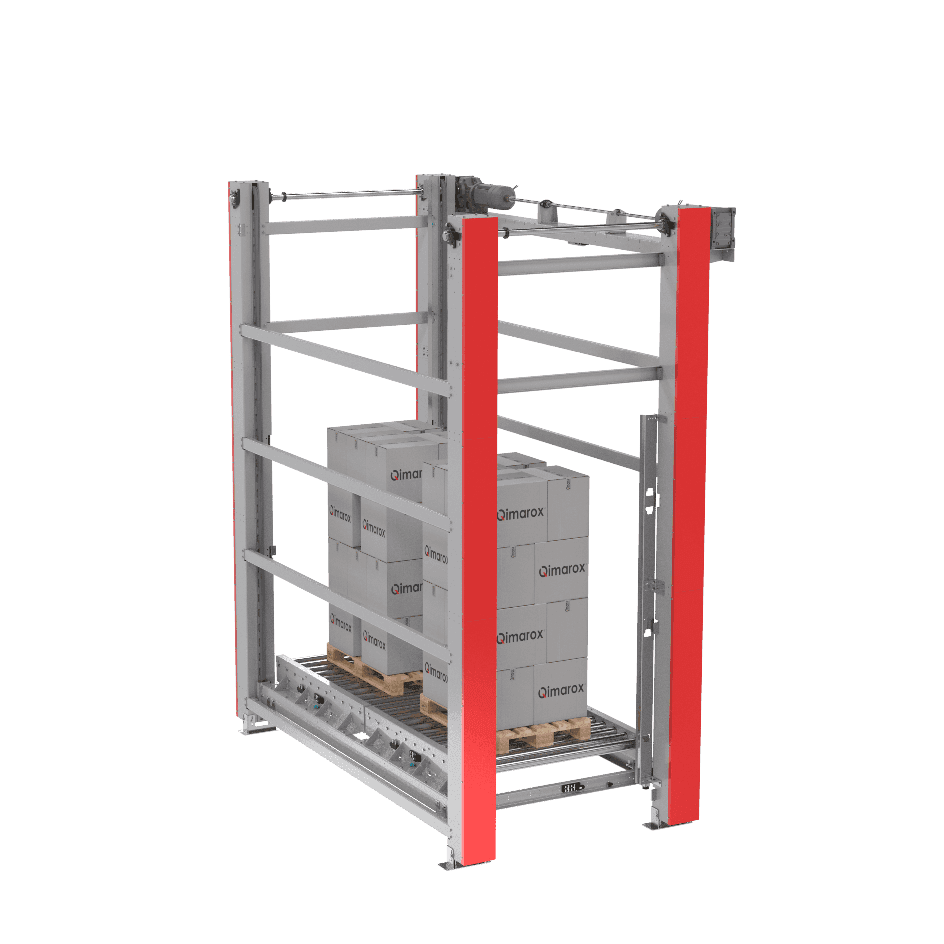

Pallet Lift2 palletsProrunner mk10-XL
Double-Pallet / Oversized Lift
An mk10 with a 7.7 m² footprint against the mk10's 3.5 m², carrying two pallets per cycle or a single long or overhanging load at the same 2,000 kg. It accommodates two Euro pallets side by side, or one pallet with goods overhanging up to 400 mm per edge, with lift driven by two electric motors between four columns. Existing mk10 installs can be upgraded to XL.
- Throughput
- Up to 200 pallets/h
- Max payload
- Up to 2,000 kg — same as the mk10

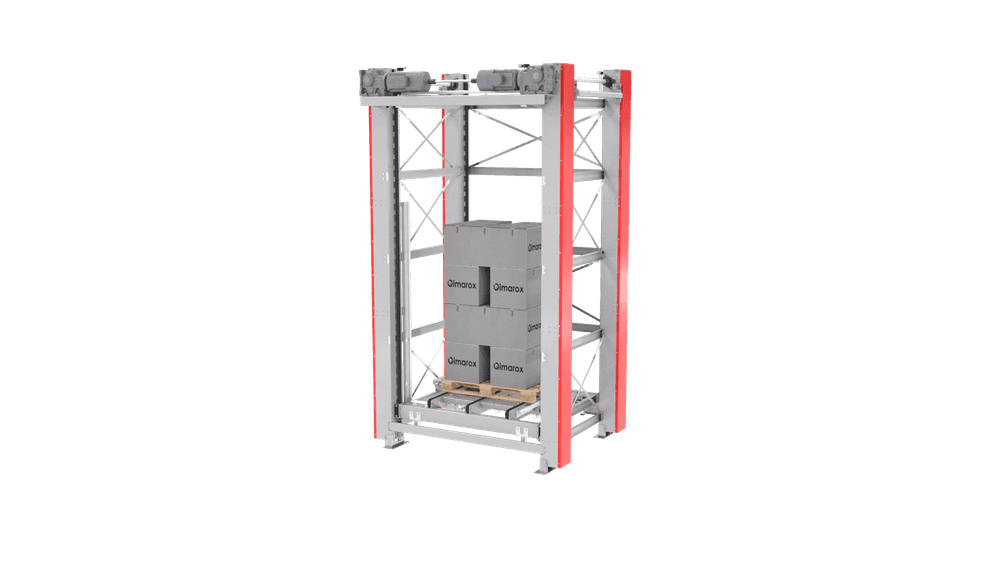

Pallet Lift3,200 kgProrunner mk10-HD
Heavy-Duty 3,200 kg Pallet Lift
A robust four-column pallet lift built to automate the heaviest pallet transport, handling loads up to 3,200 kg on a column up to 24 m, at up to 1 m/s. Four synchronised gearmotors drive it through 20B-15 chains, and its compact footprint fits almost any layout.
- Max payload
- Up to 3,200 kg
- Lift height
- Max column height 24 m
Pallet LiftAGV / AMRProrunner mk10 AGV
Vertical Transport for AGV & AMR
Based on the proven mk10 four-column platform, the mk10 AGV enables safe, reliable vertical movement of Automated Guided Vehicles and Autonomous Mobile Robots between floors and mezzanines. A reinforced carriage, docking aids and WMS / fleet-manager integration extend mobile-robot coverage beyond a single floor — configured to each robot model.
- Throughput
- Up to 100 cycles/h
- Max payload
- Up to 2,000 kg (platform plus AGV/AMR load)

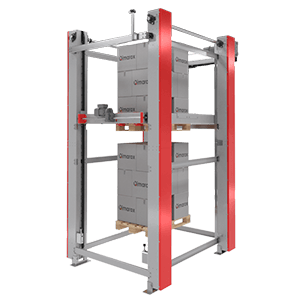

Pallet LiftPallet doublerLoaded Pallet Stacker
Prorunner mk10-PS — Pallet Doubler
Based on the proven Prorunner mk10 pallet lift, the mk10-PS stacks loaded pallets on top of one another — a "pallet doubler." Common in logistics to limit forklift movements or feed automated truck-loading systems, it lowers handling and transport costs with a modular design built exclusively from standard, low-maintenance components.
- Throughput
- Infeed 120 pallets/h · outfeed 100 doubled pallets/h
- Max payload
- Max lifting weight 1,000 kg
Vertical ConveyorCompactProrunner mk1
Discontinuous Vertical Conveyor
A discontinuous vertical conveyor with a small footprint that excels in robustness and needs minimal maintenance. Its solid steel structure is extremely stable and a flat-belt drive makes movement nearly silent, with no chain to lubricate or tension. The compact footprint lets it fit almost any factory layout, including right-angle and vertical-sorter arrangements.
- Throughput
- Max 400 products/h
- Max payload
- Max 100 kg per lift

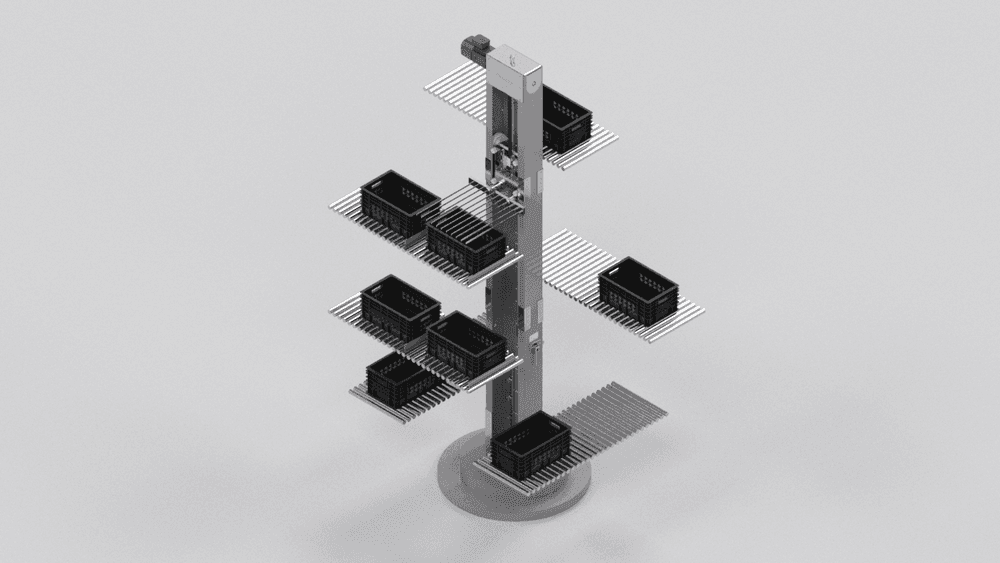

Vertical ConveyorRotatingProrunner mk1-RT
Rotating Vertical Conveyor
A standard Prorunner mk1 mounted on a rotating base for maximum flexibility and space efficiency. By rotating the foot 90, -90 or 180 degrees it offers multi-directional infeed and outfeed, enabling complex multi-level layouts and product re-orientation while managing buffer lanes to reduce bottlenecks.
- Throughput
- Up to 420 products/h
- Product size
- Small to medium boxes and trays
Vertical ConveyorContinuousProrunner mk5
Continuous Vertical Conveyor
A modular continuous vertical conveyor for average-to-high-capacity material handling. Carriers continuously lift and lower products between levels, moving products up and down simultaneously and feeding multiple infeed/outfeed points. Capacity is set by the number of carriers rather than speed, so it scales smoothly with demand.
- Throughput
- 1 carrier up to 2,000 products/h (add carriers for more)
- Max payload
- 50 kg per carrier

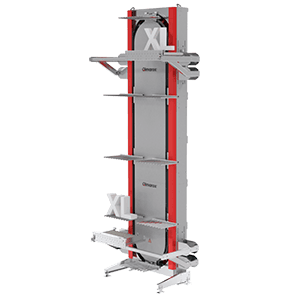

Vertical Conveyor17.3 mProrunner mk5-XL
Continuous Conveyor for Bigger Products
A module-based continuous vertical conveyor for average-to-high capacity, designed to handle bigger products than the standard mk5. It transports boxes, cases, trays or bags vertically up to 17.3 m, can run ascending and descending flows simultaneously, and keeps products upright to avoid deformation.
- Throughput
- 1 carrier 200 products/h · up to 2,000/h with more carriers
- Max payload
- 50 kg per carrier

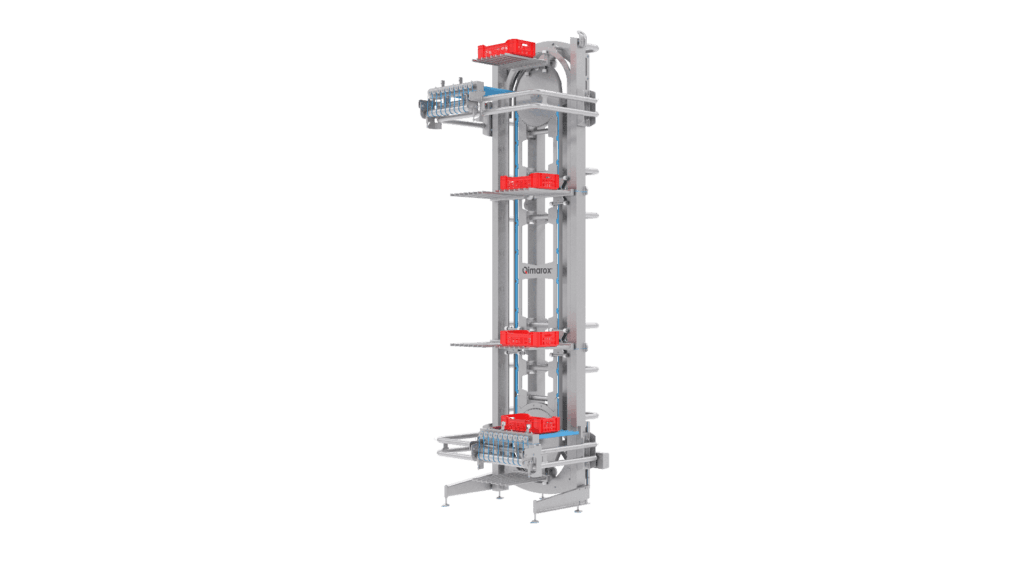

Vertical ConveyorHygienicProrunner mk5 Hygiene
Washable Hygienic Conveyor
A fully washable continuous vertical conveyor built to strict hygiene standards for food, pharma and clean environments. Its open, robust design enables efficient vertical transport while remaining easy to clean, with continuous operation for high capacity and gentle product handling, designed per EHEDG guidelines.
- Throughput
- Up to 1,100 products/h
- Max payload
- Approx. 110 lb (≈50 kg)

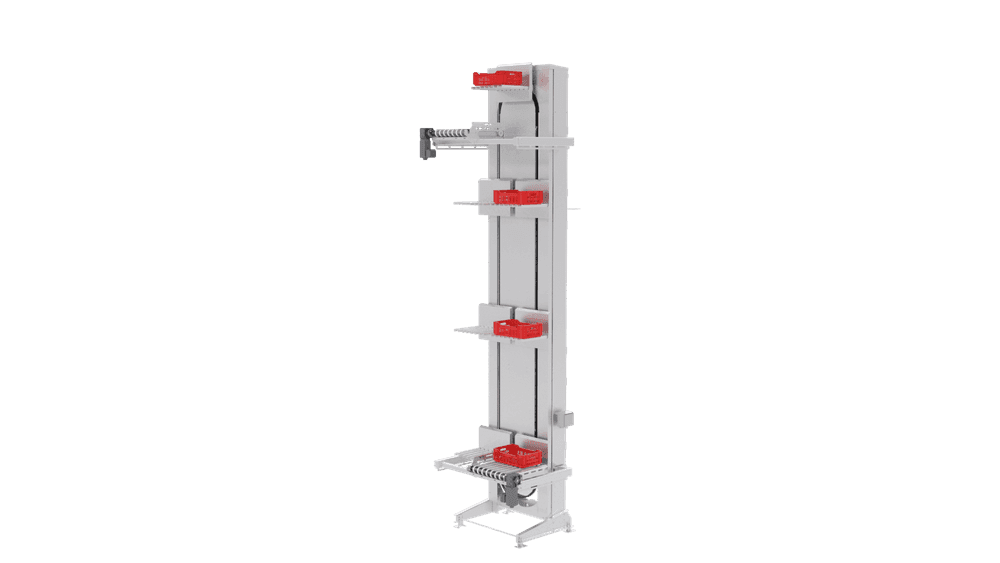

Vertical ConveyorStainlessProrunner mk5 Washdown
Stainless-Steel Washdown Conveyor
A continuous vertical conveyor built in full stainless steel for thorough cleaning and challenging, wet environments. Based on the standard mk5 with the same modular design, it handles up to 1,400 products per hour and transports boxes, cases, trays or bags up to 7.8 m, always carried upright to prevent deformation.
- Throughput
- Up to 1,400 products/h (1 carrier 200/h)
- Max payload
- 50 kg per carrier
Vertical Conveyor300 kg HDProrunner PR12
Vertical Conveyor for Shuttle, AGV & AMR
A discontinuous vertical conveyor with a small footprint, originally developed for integration with AMRs and AGVs but also configurable with belt or roller conveyors for cartons, trays and totes. Its modular construction, high lifting speed and compact footprint suit high-throughput, high-uptime operations, combining PR10-series robustness with PRmk1 flexibility.
- Max payload
- 150 kg per carrier · 300 kg HD edition
- Product size
- Max 850 × 700 mm

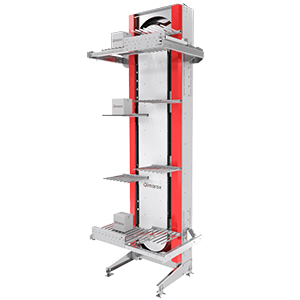

Vertical ConveyorSorterProrunner mk5 Sorter
Continuous Vertical Sorter
A vertical sorter that combines continuous vertical movement with intelligent carrier control to sort products across many levels. A motor-driven chain loop with multiple upright carriers, tracked by a relative encoder, feeds and distributes products to many infeed and outfeed points, replacing several elevators with a single machine.
- Throughput
- Up to 1,800 products/h in ideal conditions
- Max payload
- 50 kg per carrier (cartons and totes to 35 kg)

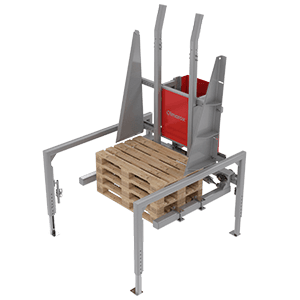

Pallet Handling225/hPallet Dispenser PD1
High-Speed Empty-Pallet Dispenser
A pneumatic dispenser for stacking and de-stacking empty pallets, suitable for both two-way and four-way pallets in wood or plastic. By automatically supplying empty pallets to downstream processes such as palletizing, it raises overall efficiency and reduces the risk of palletizer standstill.
- Throughput
- 225 pallets/h (incl. pallet transport)
- Max payload
- Lifting power 400 kg

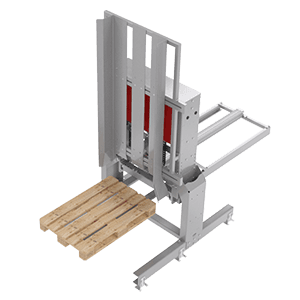

Pallet HandlingMulti-standardPallet Dispenser PD2
Multi-Standard Empty-Pallet Dispenser
A pneumatic empty-pallet dispenser for stacking and de-stacking empty pallets of different sizes, for two-way and four-way wooden or plastic pallets. It explicitly handles EURO, CHEP, GMA and Australian standard pallet types, serving as a compact, lower-throughput sibling to the PD1.
- Throughput
- 120 pallets/h (incl. pallet transport)
- Max payload
- Lifting power 400 kg

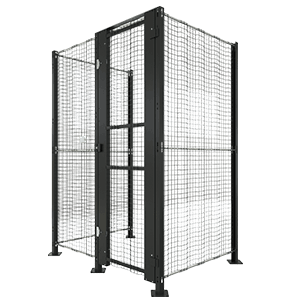

Pallet HandlingModularSecuryFence
Modular Machine-Guarding System
A flexible industrial machine-guarding fence of profiled mesh panels screwed to posts via tubes, designed to be easy to erect and adjust. Standard panels and tubes can be cut on site to fit non-standard sizes. Used to enclose machinery, robots and hazardous areas, it helps prevent injury and meet safety regulations.
- Product size
- Panels 2,123 / 1,023 mm high · six widths 225–1,495 mm
- Drive
- Profiled mesh panels screwed to posts via tubes · posts 50 × 50 mm on 138 × 138 × 6 mm base plates · mesh 40 × 39 mm, wire 3 mm
Palletizer280 kg layerIllustrative imageHighrunner HR10
Beverage-Industry Layer Palletizer
A high-level layer palletizer configured for the beverage industry. It handles 900–1,500 products per hour at up to 300 layers per hour, and carries the heaviest layer in the Highrunner range — up to 280 kg — which is what beverage packs demand. Products from 150×150×125 mm to 400×300×400 mm are fed in from a mezzanine at 600–1,000 mm.
- Throughput
- 900–1,500 products/h · 300 layers/h
- Max payload
- Product 2.5–25 kg · layer 280 kg · pallet up to 1,900 kg

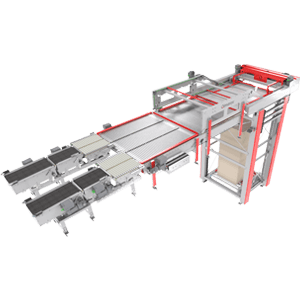

Palletizer4,380/hHighrunner HR11
Canned-Foods Layer Palletizer
A high-level layer palletizer configured for canned foods. Single infeed runs 600–2,400 products per hour; a double infeed configuration raises that to 1,200–4,380. It handles products from 150×150×75 mm up to 480×320×400 mm.
- Throughput
- Single infeed 600–2,400 products/h · double infeed 1,200–4,380 · 300 layers/h
- Max payload
- Product 2.5–25 kg · layer 180 kg · pallet up to 1,900 kg

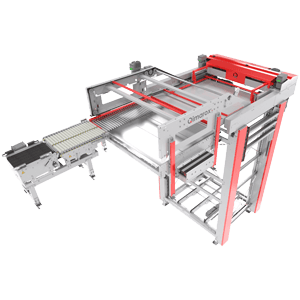

PalletizerPET / HDPEHighrunner HR12
PET / HDPE Bottle Layer Palletizer
A high-level layer palletizer configured for PET and HDPE bottles, running 720–1,500 products per hour at up to 300 layers per hour. It handles products from 150×125×100 mm to 400×300×400 mm and stacks onto pallets up to 1,900 kg.
- Throughput
- 720–1,500 products/h · 300 layers/h
- Max payload
- Product 2.5–25 kg · layer 180 kg · pallet up to 1,900 kg

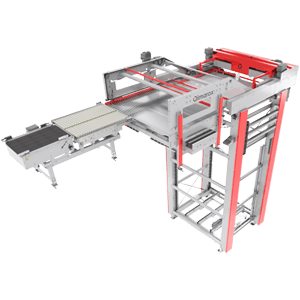

PalletizerFrom 0.5 kgHighrunner HR13
Snack-Industry Layer Palletizer
A high-level layer palletizer configured for the snack industry — potato chips, tortilla chips, pretzels, popcorn and baked snacks. It handles products from 0.5 kg at 660–1,500 products per hour, and stacks pallets to 2,600 mm.
- Throughput
- 660–1,500 products/h · 300 layers/h
- Max payload
- Product 0.5–15 kg · layer 25–180 kg · pallet 1,900 kg
Palletizer1,800/hIllustrative imageHighrunner HR14
Flow-Wrapped Candy Layer Palletizer
A high-level layer palletizer configured for flow-wrapped candy. It is the fastest of the snack-family Highrunners at 1,320–1,800 products per hour, takes products from 0.5 kg and from 150×125×75 mm, and stacks pallets to 2,600 mm.
- Throughput
- 1,320–1,800 products/h · 300 layers/h
- Max payload
- Product 0.5–15 kg · layer 25–180 kg · pallet 1,900 kg

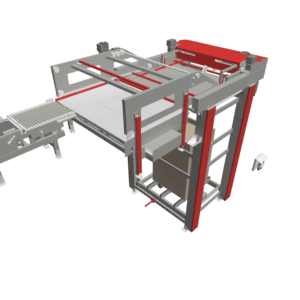

PalletizerTetra PakHighrunner HR15
Drink-Carton Layer Palletizer
A high-level layer palletizer configured for drink cartons such as Tetra Pak and Combibloc, running 1,020–1,800 products per hour. Its intelligent layer handling suits lines where carton dimensions and weights vary.
- Throughput
- 1,020–1,800 products/h · 300 layers/h
- Max payload
- Product 2.5–25 kg · layer 180 kg · pallet up to 1,900 kg
PalletizerOn requestIllustrative imageHighrunner HR16
Drink-Carton Layer Palletizer — specifications pending
A high-level layer palletizer configured for the beverage industry, specifically drink cartons such as Tetra Pak and Combibloc. Qimarox states it handles a large variety of product sizes and layer patterns but has not yet published its specifications — their page says full specifications will follow. Contact us and we will obtain them from Qimarox for your application.

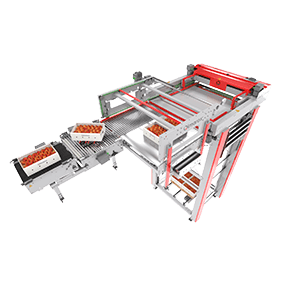

PalletizerFresh produceHighrunner HR17
Fresh-Produce Layer Palletizer
A high-level layer palletizer configured for fresh food produce, running 720–1,200 products per hour at up to 240 layers per hour. It takes shallow trays from 400×300×120 mm up to 600×400×400 mm.
- Throughput
- 720–1,200 products/h · up to 240 layers/h
- Max payload
- Product 2.5–25 kg · layer up to 180 kg

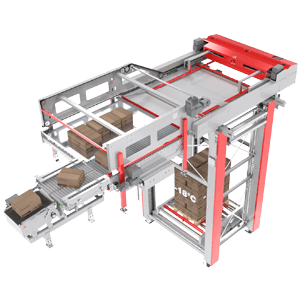

PalletizerColdstoreHighrunner HR20
Coldstore Layer Palletizer
A high-level layer palletizer configured for coldstore environments, running 720–1,800 products per hour at up to 240 layers per hour. It handles trays and cartons from 400×300×120 mm to 600×400×400 mm.
- Throughput
- 720–1,800 products/h · up to 240 layers/h
- Max payload
- Product 2.5–25 kg · layer up to 180 kg
PalletizerPetfoodIllustrative imageHighrunner HR21
Petfood Layer Palletizer
A high-level layer palletizer configured for petfood — bagged product inside a carton — running 720–1,200 products per hour at up to 240 layers per hour, with products from 400×300×120 mm to 600×400×400 mm.
- Throughput
- 720–1,200 products/h · up to 240 layers/h
- Max payload
- Product 2.5–25 kg · layer up to 180 kg
PalletizerPET / HDPE foodIllustrative imageHighrunner HR23
PET / HDPE Food-Bottle Layer Palletizer
A high-level layer palletizer configured for food in PET and HDPE bottles, running 720–1,500 products per hour at up to 300 layers per hour. Its minimum product is much smaller than its HR17, HR20 and HR21 siblings, from 150×125×120 mm rather than 400×300×120 mm.
- Throughput
- 720–1,500 products/h · up to 300 layers/h
- Max payload
- Product 2.5–25 kg · layer up to 180 kg

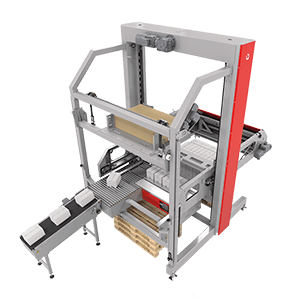

Palletizer9 m²Lowrunner LR1
Modular Low-Infeed Palletizer
The entry model of the Lowrunner range. The whole layer-formation station sits at floor level, so no operator platform is needed. It runs 100–800 products per hour at 30–60 layers per hour with an infeed range of 600–3,000 mm, in a 9 m² footprint — the smallest in the Lowrunner range.
- Throughput
- 100–800 products/h · 30–60 layers/h
- Max payload
- Product 1–25 kg · layer up to 180 kg

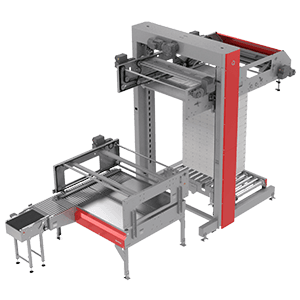

Palletizer1,500/hLowrunner LR3
Low-Level Infeed Palletizer
A floor-level palletizer that nearly doubles the LR1 on throughput — 100–1,500 products per hour at 30–120 layers per hour — over the same 600–3,000 mm infeed range and the same product envelope, in a 12 m² footprint.
- Throughput
- 100–1,500 products/h · 30–120 layers/h
- Max payload
- Product 1–25 kg · layer up to 180 kg

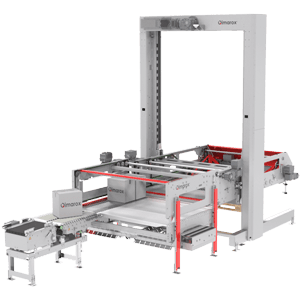

Palletizer4,380/hIllustrative imageLowrunner LR11
Canned-Foods Low-Level Palletizer
The floor-level counterpart to the Highrunner HR11, configured for canned foods. Single infeed runs 600–2,400 products per hour and a double infeed configuration reaches 1,200–4,380, taking products up to 480×320×400 mm.
- Throughput
- Single infeed 600–2,400 products/h · double infeed 1,200–4,380 · 300 layers/h
- Max payload
- Product 2.5–25 kg · layer 180 kg · pallet up to 1,900 kg
PalletizerPET / HDPELowrunner LR12
PET / HDPE Bottle Low-Level Palletizer
The floor-level counterpart to the Highrunner HR12, configured for PET and HDPE bottles. It runs 720–1,500 products per hour at up to 300 layers per hour, handling products from 150×125×100 mm to 400×300×400 mm.
- Throughput
- 720–1,500 products/h · 300 layers/h
- Max payload
- Product 2.5–25 kg · layer 180 kg · pallet up to 1,900 kg
PalletizerFrom 0.5 kgIllustrative imageLowrunner LR13
Snack-Industry Low-Level Palletizer
The floor-level counterpart to the Highrunner HR13, configured for the snack industry. It takes products from 0.5 kg at 660–1,500 products per hour and stacks pallets to 2,600 mm, with the layer-formation station at floor level so no operator platform is required.
- Throughput
- 660–1,500 products/h · 300 layers/h
- Max payload
- Product 0.5–15 kg · layer 25–180 kg · pallet 1,900 kg
Palletizer1,800/hIllustrative imageLowrunner LR14
Flow-Wrapped Candy Low-Level Palletizer
The floor-level counterpart to the Highrunner HR14, configured for flow-wrapped candy. At 1,320–1,800 products per hour it is the fastest of the snack and candy Lowrunners, takes products from 0.5 kg and from 150×125×75 mm, and stacks pallets to 2,600 mm.
- Throughput
- 1,320–1,800 products/h · 300 layers/h
- Max payload
- Product 0.5–15 kg · layer 25–180 kg · pallet 1,900 kg
PalletizerDrink cartonsIllustrative imageLowrunner LR15
Drink-Carton Low-Level Palletizer
A floor-level palletizer configured for drink cartons, running 100–1,260 products per hour at 30–120 layers per hour. Infeed sits between 600 and 1,500 mm and the machine occupies 12 m².
- Throughput
- 100–1,260 products/h · 30–120 layers/h
- Max payload
- Product 2.5–25 kg · layer up to 180 kg

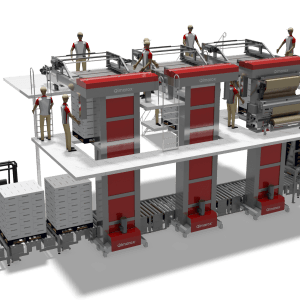

Palletizer450 layers/hCrossrunner
In-Line Space-Saving Palletizing System
A palletizing system that arranges several palletizers in line and serves them from a single conveyor, which is what saves the floor space. It reaches 500–3,500 products per hour and 240–450 layers per hour — the highest layer rate Qimarox publishes — handling products from 1 to 25 kg.
- Throughput
- 500–3,500 products/h · 240–450 layers/h
- Max payload
- Product 1–25 kg
Qimarox systems — frequently asked questions
Layer palletizers, vertical conveyors and pallet lifts — what fits your line
What is a layer palletizer (Highrunner) and who is it for?
A layer palletizer forms a complete product layer and places it on the pallet in a single motion, reaching up to 4,500 products per hour. It suits high-volume production and logistics lines — food, beverage, consumer goods and distribution — that need high, consistent throughput. Qimarox's Highrunner range includes models for frozen food (HR8), logistics (HR9) and high speed (HR7).
What's the difference between robotic palletizing and a Qimarox layer palletizer?
A robotic palletizer (a FANUC or ABB arm) is flexible across mixed products and patterns at medium throughput. A dedicated Qimarox layer palletizer is built for high, steady throughput at a lower cost per product. Many customers combine both — tell us your application and we'll recommend the right fit.
What is a vertical conveyor or pallet lift (Prorunner)?
A vertical conveyor (Prorunner mk1/mk5) moves boxes, trays and bags between levels, while a pallet lift (Prorunner mk9/mk10) raises and lowers full pallets up to 3,200 kg. They save floor space and safely connect floors, mezzanines and existing conveyor lines.
How much does a Qimarox palletizing system cost in Israel?
Pricing depends on throughput, product type, stack height and automation level. Because the systems are modular, they can be tailored to your budget and needs. Send us your application details and we'll come back with a quote and lead time.
Does Xpert Robotics provide installation and support for Qimarox in Israel?
Yes. Xpert Robotics is your point of contact in Israel for consultation, supply, integration, installation and ongoing support of Qimarox products — from specification through to production start-up.
About Qimarox
Qimarox, based in Harderwijk, the Netherlands, develops and manufactures key components for material handling — Highrunner layer palletizers, Prorunner vertical conveyors and pallet lifts, and pallet dispensers. The company grew out of Nedpack (1995), was established as Qimarox in 2012, and serves 200+ system partners and integrators worldwide. Xpert Robotics is your point of contact for supply, integration and support in Israel.
